CROMPTON GREAVES PUMPS

Crompton_Monoblock

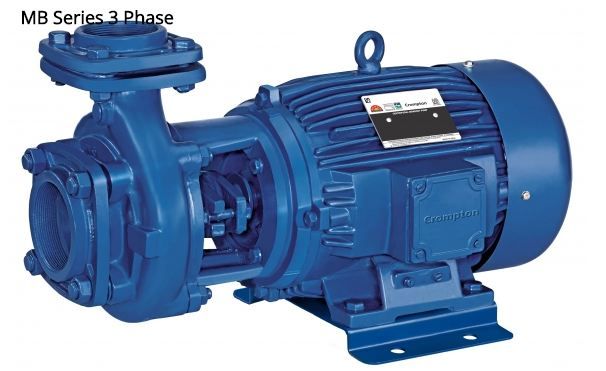

CROMPTON GREAVES MB/MI SERIES PUMPS
Range is incorporated with a fan cooled motor, which grants high speed and efficiency to the range. Also, the range is incorporated with an electric motor for single or three phase supply, a TEFC three phase motor pump run enclosure and a capacitor start induction run single phase motor pump. All these components are developed using graded cast iron, which ensures durability of the range.

Technical Specifications
Range: 0.37 kW to 15.5 kW (0.5 to 20 HP)
Supply: 225 Volts, 1 Phase 50 Hz, AC & 415V, 3Phase
Pipe size: 25 x 25 mm to 100 x 100 mm
Total head: up to 60 meters
Capacity: up to 2000 LPM
Sealing: Glend Packing & Mechanical Seal

CROMPTON GREAVES
OPENWELL SUBMERSIBLE PUMPS
Specially designed for operation under submerged condition in water with power to withstand wide voltage fluctuations in single phase as well as three phase. motor body made of C.I/SS for sturdiness and long life and fitted with sleeves and thrust bearing for longer life.

Technical Specifications:
Range :- 0.75 to 22 kW (1 to 30.0 HP)
Pipe Size :- 25 x 25 to 100 x 100 mm
Speed :- 3000 RPM (Syn)
Total Head :- Upto 60 Metres
Capacity :- Upto 2200 LPM

crompton_openwell
sewage_pumps

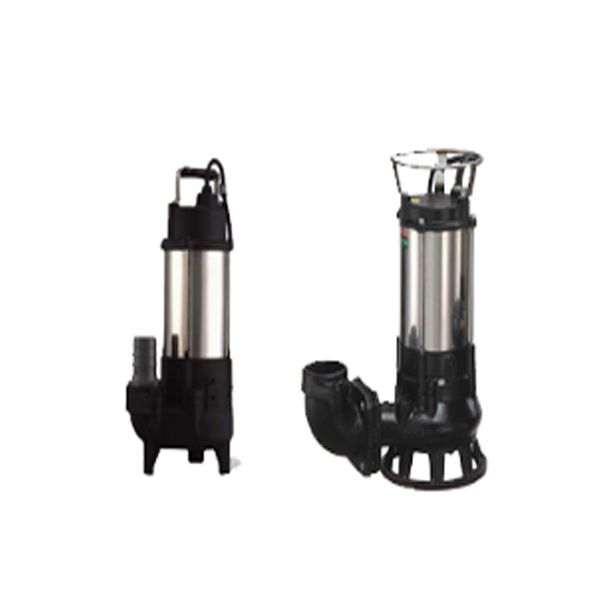

CROMPTON GREAVES SEWAGE PUMP
Developed with the most advanced and sophisticated engineering and it has the possibility to operate also if partially submerged.The rotating impeller which is centrifuged in the ring chamber transmits kinetic energy to the water; kinetic energy is transformed into pressure energy.

Technical Specifications
Flow rate upto 1100 LPM
Temprature upto 50oC
Pump Body - Moplen/SS/CI
Impeller - Noryl/SS/CI
Head Upto 30m.
Free passage of grain upto 50mm.

MOTOR
Built-in overload motor protector with automatic reset
Permanent split capacitor
Protection IP 68

APPLICATION
These pumps are best suitable for pumping out the excess water out from the garage, garden, basement, fountains, swimming pool, excavations, subways etc. They can also be used for pumping of dirty river water.

CROMPTON GREAVES END SUCTION PUMPS
Suitable for Fire Fighting and Other High Head Applications. End Suction Pumpsets are specially designed, with the use of latest manufacturing techniques, to meet the water requirements of the different needs in Industries and Other Commercial Units.

Technical Specifications
Capacity Upto 1300m3/Hr.
Head Upto 160 Meters.
Delivery Sizes 32 to 250mm.
Casing Pressure upto 24kg/cm2.
Horizontal BacK Pullout design for easy inspection and maintenance.

Applications
Best for Hospitals, Hotels, Multi-storey Buildings,HVAC, Fire Fighting,Multiplex,Cooling Towers, Schools, Collages, Institutions,Ports & Shipyards,Petroleum & Refineries etc.

crompton_endsuctionpump
