PUMPS

KSB_CPK

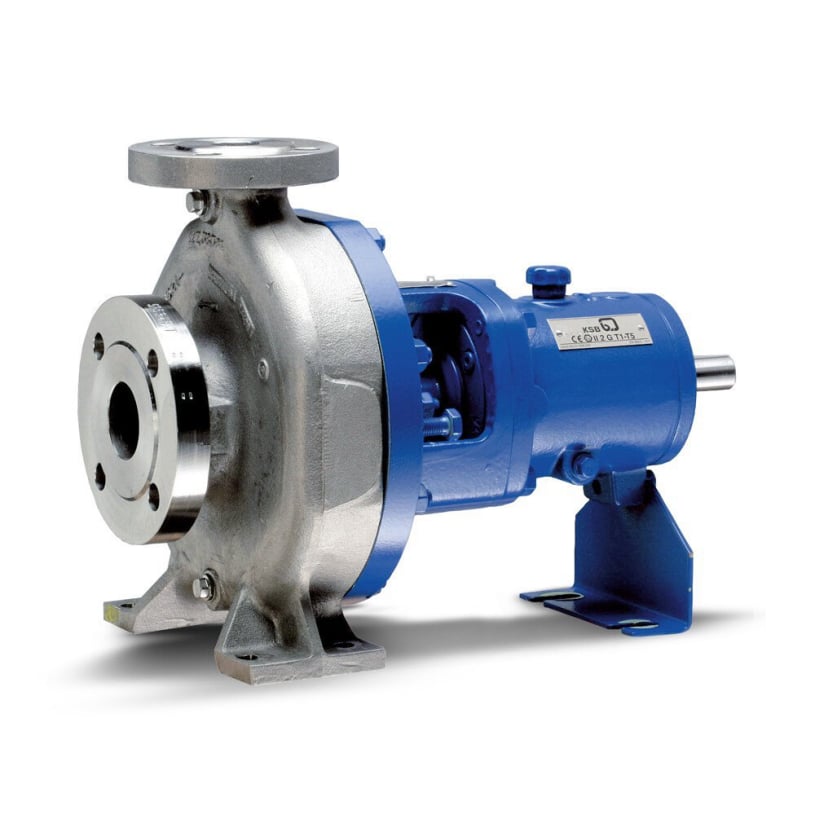

KSB CPK PUMPS
Horizontal, radially split, volute casing pumps in back pullout design, fitted with a radial impeller, single entry, single stage & designed in accordance with DIN 24256/ISO 2858/ISO 5199.

Operating Data
Pump Sizes: DN 32 to 250 mm
Capacity Q:  up to 1200 m3 /hr
Head H:  up to 150 m
Pressure P:  up to 25 bar
Temperature t:  -70ºC to +320ºC

Applications
- Handling aggresive organic & inorganic fluids in the chemical & petrochemical industries.
- These pumps are also used at Thermic Fluid Boilers, Hot Oil Transfer.
- Plywood & Laminates, Refinery off-sites, Paper & Pulp Industry, Food Industry, Sugar Industry.
- Seawater desalination plants, absorption plants in environmental engineering, Power stations etc.

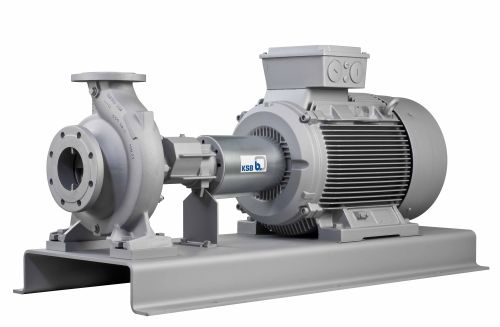

KSB ETANORM SYT HOT WATER/THERMIC FLUID PUMPS
Handle hot water as well as mineral and synthetic thermal oils. Reliability and energy efficiency make this pump a popular choice.

Operating Data
Pump Sizes: DN 25 to 400 mm
Capacity Q: up to 2300 m3 /hr
Head H: up to 90 m
Pressure P: up to 16 bar
Temperature t: -30ºC to +350ºC

Applications
Thermic Fluid Heaters
Hot Oil Transfer or Transportation
Hot Water Circulation



KSB_aircooledpump
KSB_MEGACPK

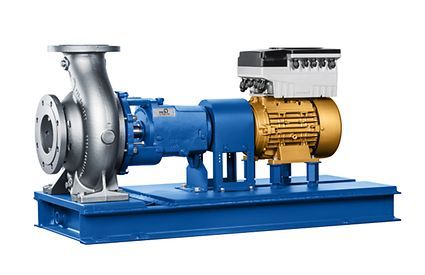

KSB MEGACPK PUMPS
Specially designed to cater the chemical and petrochemical industry, and many other fields of application. Pumps are designed to meet better efficiency while operation.

Operating Data
Capacity Q: up to 1160m3 /hr
Head H: up to 162 m
Pressure P: up to 25 bar
Temperature t: -40ºC to +400ºC

Applications
Chemical Industry
Petrochemical Industry
Process Engineering
Sugar Industry
Biodiesel, bioethanol
Fire-fighting systems / fire-fighting water
Seawater desalination / reverse osmosis
Condensate
Hot Water
Brine
Steel Industry
Heat Transfer Media
Cleaning Agents

KSB MEGACHEM PUMPS
Horizontal, end suction, centrifugal, radially split, volute casing process pump in back-pull-out design, fitted with a radial impeller.

Operating Data
Pump Sizes: DN 25 to 125 mm
Capacity Q:  up to 400 m3 /hr
Head H:  up to 100 m
Pressure P:  up to 24 bar
Temperature t:  -30ºC to 200ºC

Application
Water treatment
Organic & inorganic liquids
Reverse osmosis
Handling of pulp
Solvent extraction
Condensate handling




ksb_megachem
ksb_movi

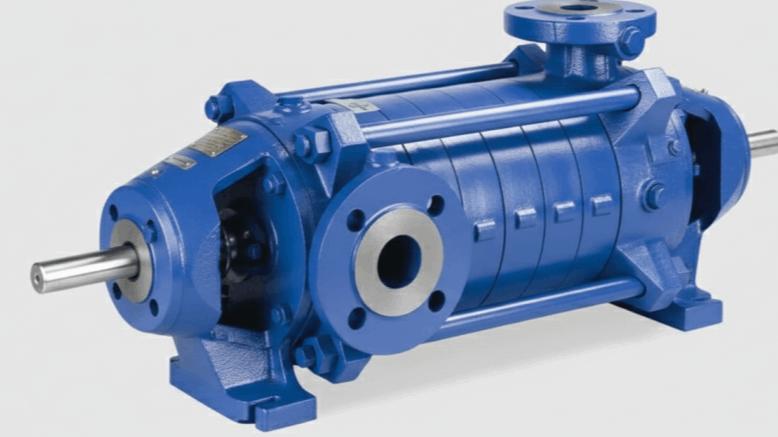

KSB MOVI PUMPS
KSB MOVI MULTISTAGE PUMPS
Single or multistage centrifugal pump of the ring-section type, with shaft protection sleeve / shaft sleeve. Pump feet cast of the bearing housings.

Operating Data
 Pump size : DN 32 mm
Capacity : up to 18 m3/hr
Head : up to 368 m
Discharge Pr. : up to 40 bar
Temperature : -10°C to 140°C
Material : Cast Iron, C. I. with Bronze internals

Applications
water supply sprinkling
irrigation
booster plants
circulation of warm water
hot and cooling water
delivery of condensate
Boiler feed water
fire-fighting pumps.
