PROCESS PUMPS

Watershine_hotoilpump

THERMAL OIL PUMPS/HOT WATER PUMPS

Centrifugal pumps which are specifically design for circulating thermic fluid oil / hot water at maximum temperatures.

PERFORMANCE RANGE
Capacity : 500 M³/hr.
TDH UP TO: 160 mtr
Speed - n -: 2900 rpm
Temperature : 350 ºC
Working Pressure : 16 Bars
Pump sizes - DN - : 25 mm to 200mm
Type : Air Cooled Or Water Cooled

HIGH TEMPERATURE THERMIC FLUID PUMP

Air Cooled Thermic Fluid Pumps which are specifically design for high temperature circulating thermic fluid oil, hot oil, waste oil management, Edible Oil, Fryer Oil  at maximum temperatures.

PERFORMANCE RANGE
Capacity : 500 M³/hr.
TDH UP TO: 120 mtr
Speed - n -: 2900 rpm
Temperature : 400 ºC
Working Pressure : 16 Bars
Pump sizes - DN - : 25 mm to 200mm

high_temperatureoilpump
chemicalpumps

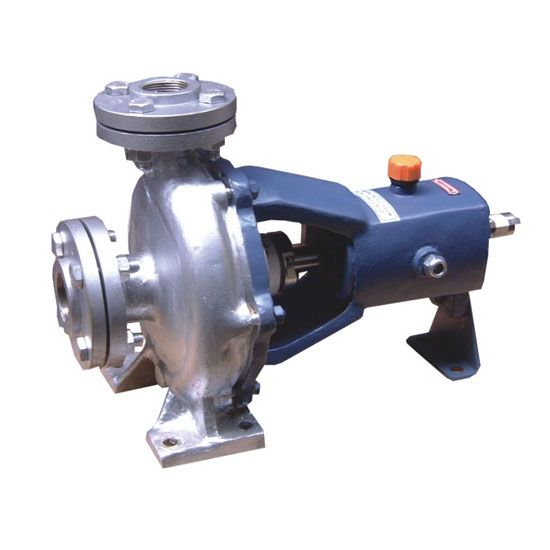

CHEMICAL PROCESS  PUMPS

Centrifugal Process Pumps such as Centrifugal Process Pumps in Investment Casting, Centrifugal Chemical Process Pumps, Close Coupled Pumps, Centrifugal Water Pump, Stainless Steel Centrifugal Pump.

PERFORMANCE RANGE
Capacity : 500 M³/hr.
TDH UP TO: 160 mtr
Speed - n -: 2900 rpm
Temperature : 200 ºC
Working Pressure : 16 Bars
Pump sizes - DN - : 25 mm to 200mm


APPLICATION
TEXTILE PROCESSING
CHEMICAL PROCESSING
CORROSIVE SERVICES
THERMIC FLUID HEATERS
FRYERS
FOOD PROCESSING
WATER TREATMENT
ORGANIC CHEMICALS
PULP AND PAPER INDUSTRY
PHARMACEUTICALS
POLYMERS & PETROCHEMICALS
SUGAR,SOLVENT

MATERIAL OF CONSTRUCTION

CAST IRON, CF8, CF8M, CF3M, ALLOY20, NICKEL AND CHROME BASED ALLOYS.

FEATURES

BACK PULL OUT DESIGN

GLAND SEALING OR MECHANICAL SEAL

LOW NOISE WITH HIGH EFFICIENCY

LOW NPSH

SHAFT FULLY SLEEVE PROTECTED
